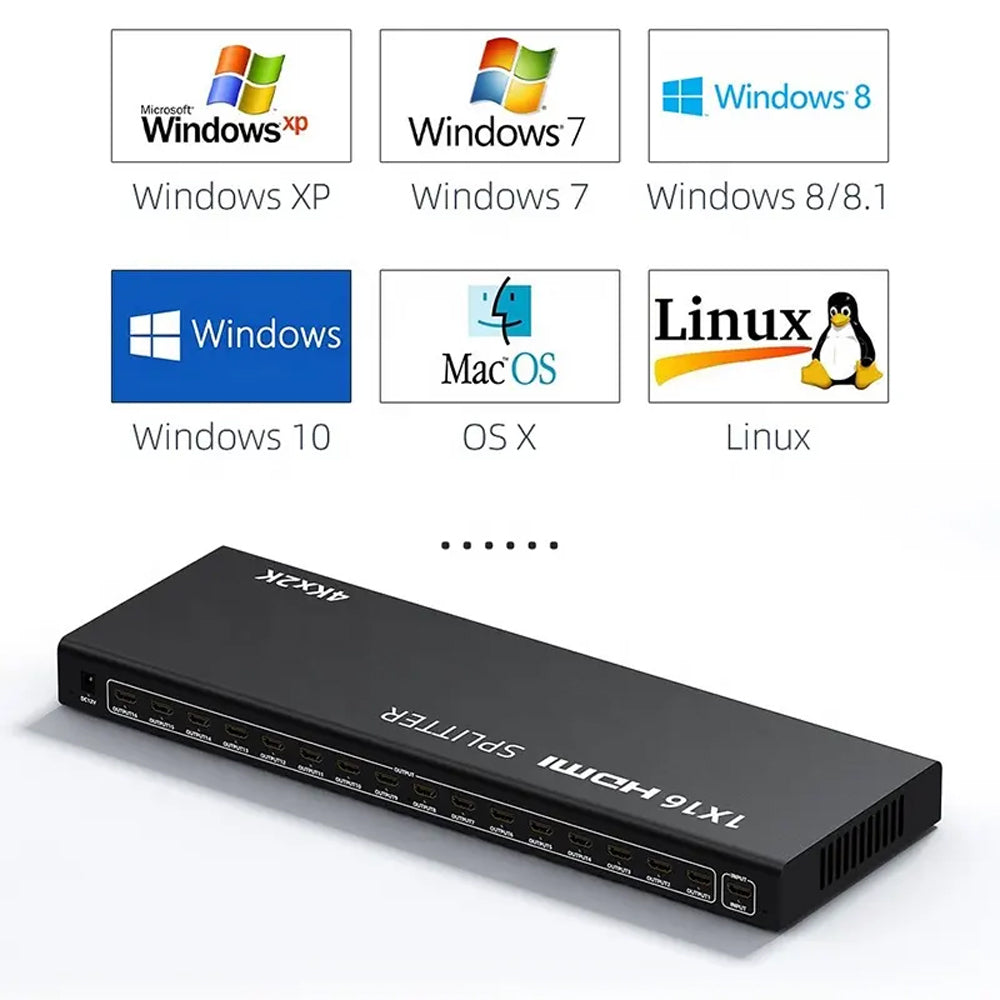

Hdmi Splitter 16 Port 2k 4k

This high performance HDMI splitter provides 1 HDMI into 16 HDMI outputs and supports 4K2K, Full 3D, 12-bit Deep color as well as High DefinitionLossless Audio. With its 3Gbps bandwidth and the additional features of the latest HDMI standards, you can be sure of great HDMI distribution.

It supports almost all HDMI-enabled equipment, such as DVD players, Amazon Fire TV, Apple TV, HD TV, HD Projector, satellite set-top boxes and other HDMI devices. Bring great convenience to multimedia teaching, video conference, training, product display and so on. Specifications:

Input port: 1 x HDMI Input Port

Output port: 16 x HDMI Output Ports

HDMI version: HDMI 1.4b

HDMI resolution: up to 3840*2160/30Hz

Support video format: 8/10/12 bit deep color

Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth: 320MHz

Max baud rate: 3.4Gbps

Input cable distance:(1080p resolution) ≤10m,(4K resolution)≤5m AWG26 HDMI standard cable

Output cable distance: (1080p resolution) ≤15m,(4K resolution)≤10m AWG26 HDMI standard cable

Max working current: 500mA

Power adapter format: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/2A

Operating Temperature range: -15 to +55℃

Operating Humidity range: 5 to 90%RH (No Condensation)

Dimension (L x W x H): 18.11’’x5.90’’x1.57’’

Weight:1680g Operating and Connecting:

1.Connect 1 HDMI cable from HDMI source devices into HDMI Splitter input.

2.Connect 16 HDMI cables from each displayers (monitors or projectors) into the HDMI Splitter outputs.

Package include:

1*1 x 16 Port HDMI Splitter

1*Power Adapter

1*User Manual
