50m Type-c (chd01) Wireless Hdmi 1080p Video Transmitter Receive Kit

Product IntroductionThe USB-C wireless transmitter transmits high-definition audio and video signals through 5G WiFi, as well as high-definition videos from PCs or fully functional mobile devices
Through WiFi transmission, one-on-one applications can be achieved. This device has excellent image processing and transmission capabilities, making signal transmission more streamlined
Smooth and stable.

Main characteristics
1. Transmit HDMI video and audio signals over long distances via WiFi, up to 50 meters in length;
2. Compatible with HDMI 1.4 and 1.3 interfaces;
3. Able to automatically recognize and configure various display modes;
4. Built in automatic balancing system, smooth, clear, and stable screen;
5. No software, no settings, no drivers required, just connect to cast the screen;6. ModelCHD01

Installation steps
Receiver+transmitter combination, plug and play
1. Connect the HD port of the receiver to the video input port of a display device such as a monitor or television.
2. Connect the USB-C power port of the receiver to a charging cable and plug it into a power adapter or USB power port (voltage 5V, current 2A).
3. Adjust the HD signal source of the monitor or TV to the corresponding HD port until the receiver's startup screen displays and the startup is successful.
4. Connect the transmitter to a computer or other device with USB-C video output function. After the indicator light enters the flash state, wait for more than ten seconds,Complete the projection.

Pairing instructions
The product has been paired before leaving the factory. Improper operation or other situations during use may cause pairing failure, and the device needs to be restored
The steps for re pairing are as follows:
1. Please hold down the receiver function key for more than 5 seconds, and a prompt message will pop up on the interface: “Pairing Timeout: 90S”, Wait for the transmitter to enter pairing mode.
2. Press and hold the transmitter function key for more than 5 seconds, and the indicator light will flash for pairing. Wait for the transmitter indicator light to remain on to indicate successful connection.

Parameter
HDMI protocol: HDMI 1.4
Maximum supported resolution: 1920X1080@60 Hz
Interface: HDMI A interface
Impedance: 100 Ω
Output: HDMI (synchronous audio and video output)
Encoding format: H.264
WIFI:5G
Protocol: Standard 802.11 a/b/g/n
Transmission distance: up to 50 meters in open environments
Power supply: USB power supply: 5 V/2A
Maximum power consumption: MAX 3W
Working temperature/humidity: 0 ℃~50 ℃/10%~80% RH (non solidifying)
Product size: 49.6 × 43.6 × 16.6mm
Resolution: 1920 * 1080, 1280 * 720 (60P), 1280 * 960, 1280 * 800, 1280 * 720 (50P), 1024 * 76
Frame rate: 30-60 frames per second
Delay: 80-100ms (open environment)

RX
Storage space: 128MB
Reception: Built in antenna
Interface: HDMI、USB-C

TX
Number of interfaces: 2
Interface: USB-C
Resolution: 1080P

Function

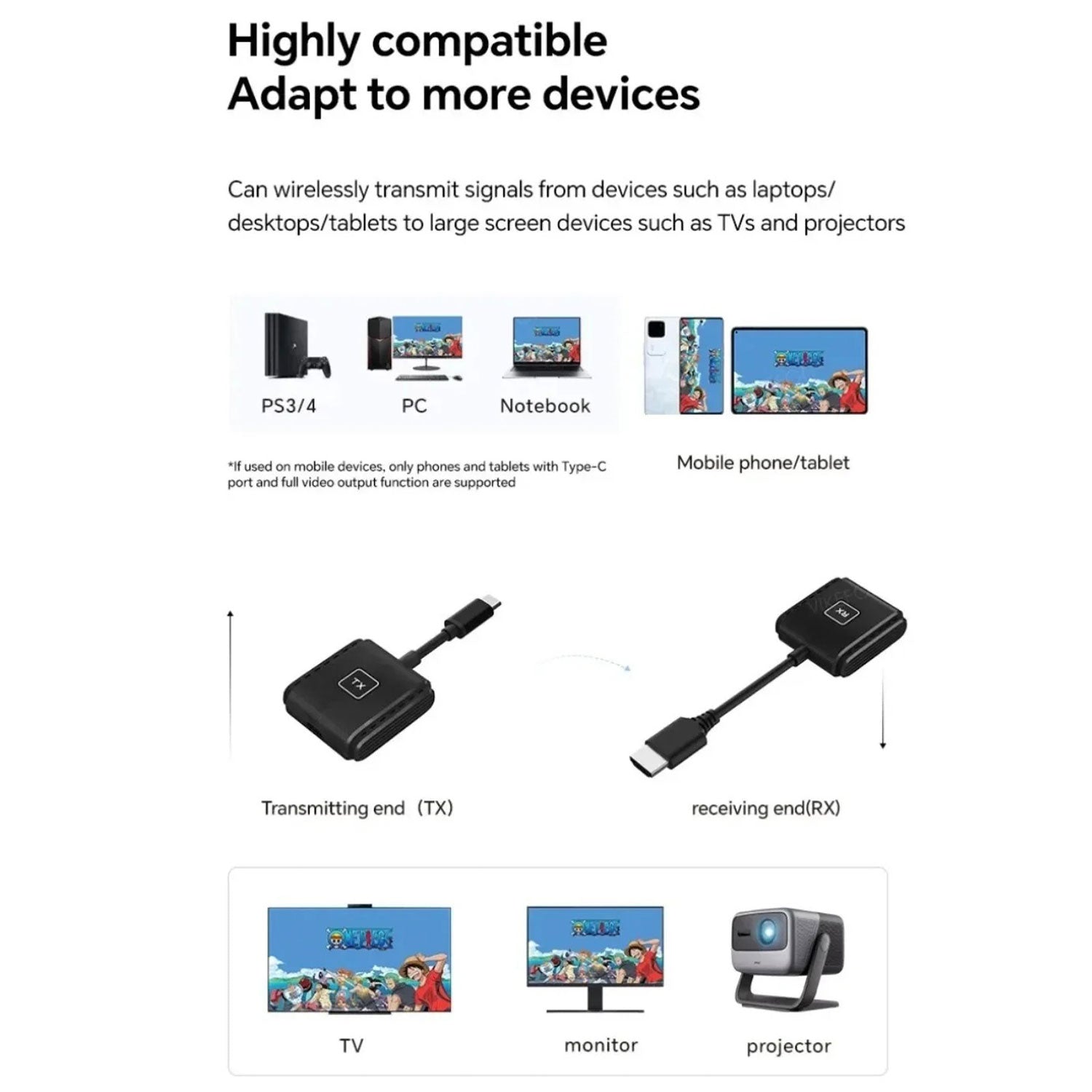

It can realize the use of laptops, tablets or mobile phones on LCD displays, projectors, touch all-in-one machines
Wireless screen mirroring is performed on display devices such as LED splicing screens.
