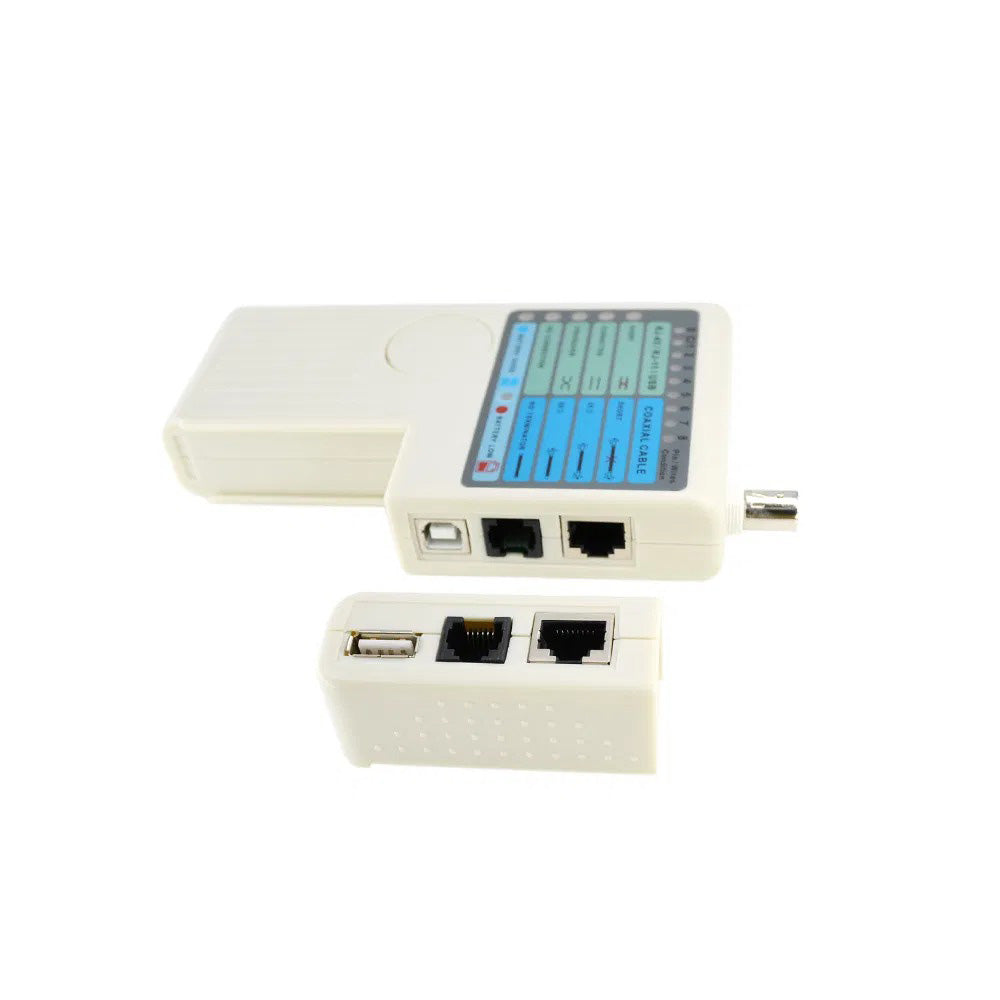

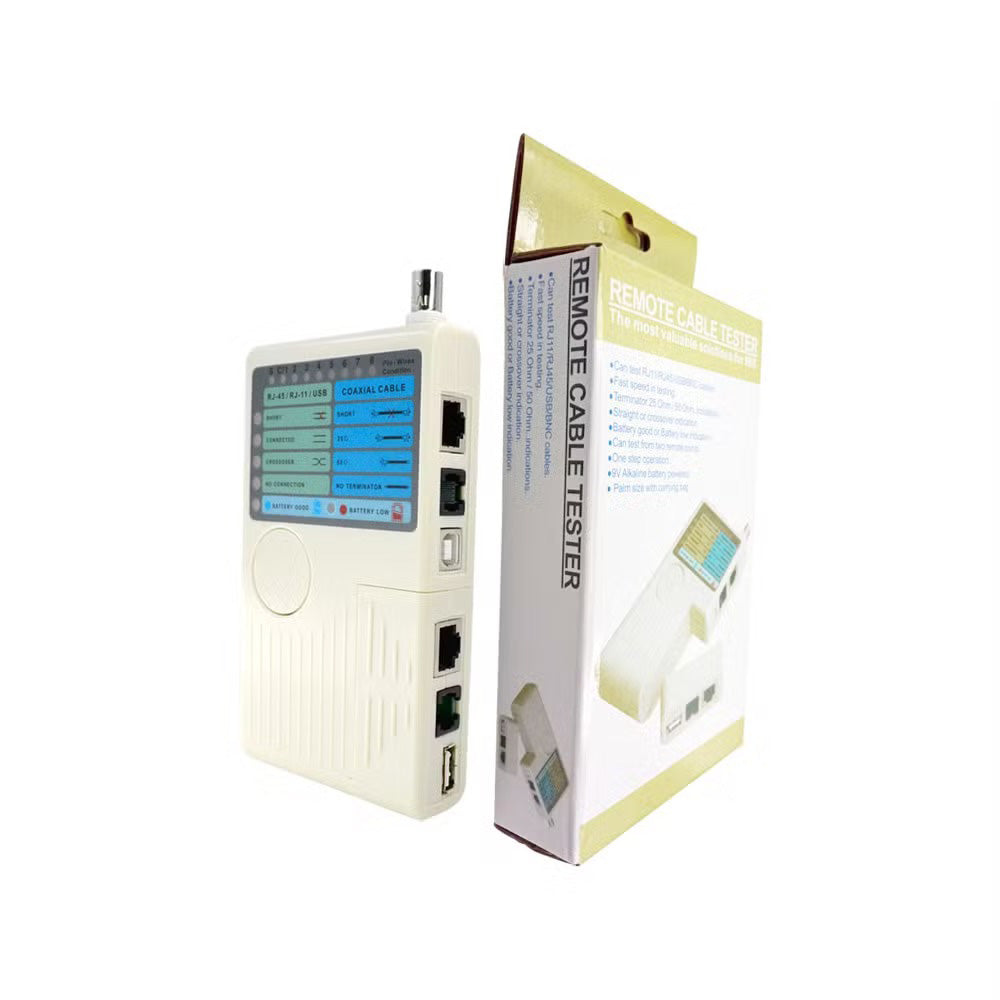

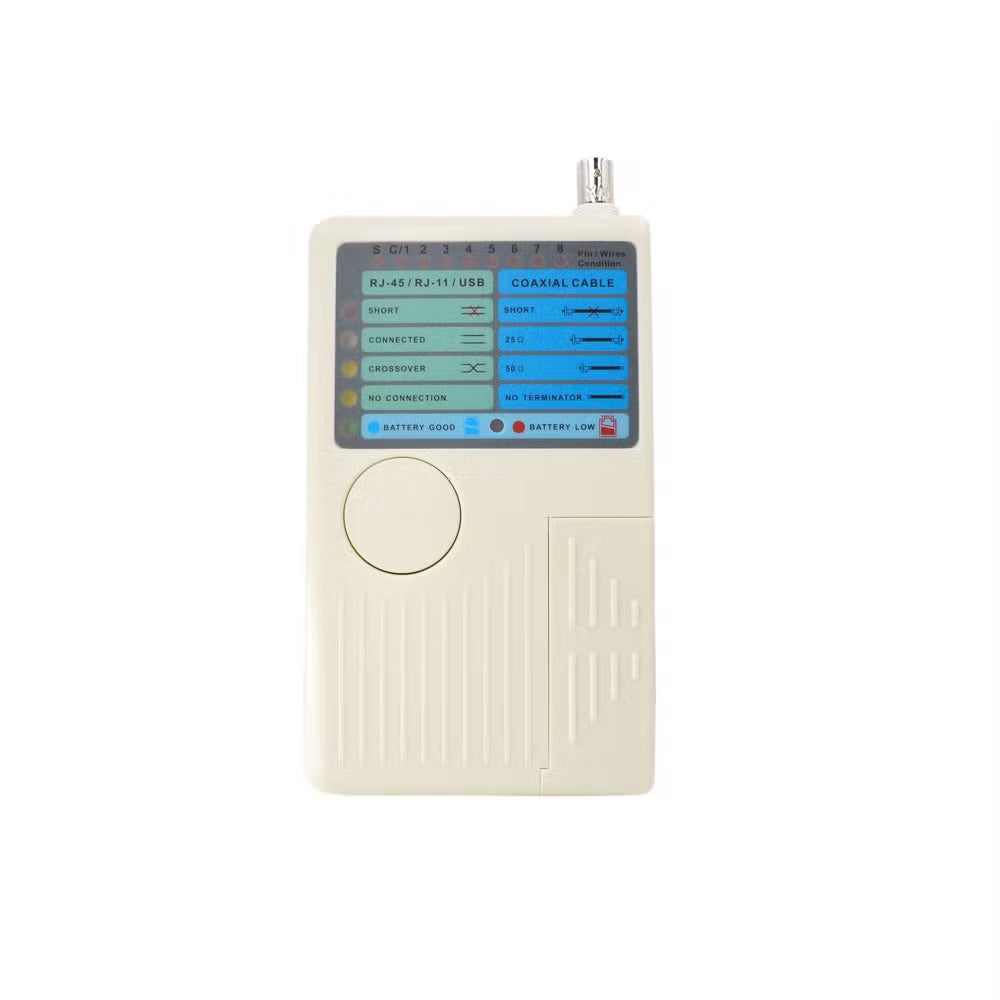

4 In 1 Network Cable Tester Rj45/rj11/rj12 /usb/bnc Lan Cable Tester

Overview\

The 4-in-1 Network Cable Tester is an all-in-one solution designed for IT professionals, network installers, and DIY users to test various types of data and communication cables. It supports RJ45, RJ11, USB, and BNC cables, allowing you to seamlessly troubleshoot both shielded and unshielded installed wiring or patch cables up to 300 feet. Featuring a portable handheld design with clear LED indicators and simple one-button operation, it delivers fast and accurate results every time.\

Key Features\

\
• 4-in-1 Compatibility: Tests RJ45, RJ11, USB, and BNC cables\
\
• Test Installed or Patch Cables: Works for both pre-installed and loose cables\
\
• Shielded or Unshielded LAN Cables: Supports STP and UTP testing\
\
• USB Shield Testing: Detects shield continuity in USB cables\
\
• Remote Testing: Test from two different remote locations\
\
• Audible Beeper: Beeps for instant test feedback\
\
• LED Indicators: Clearly shows connection status and wire faults\
\
• BNC Terminator Detection: 25/50 Ohm indication support\
\
• Gold-Plated Ports: RJ45/RJ11 with 50μ gold plating for better contact\
\
• Handheld Design: Portable and ergonomic for fieldwork\
\
• Quick Operation: One-button test with fast results\
\
• Low Battery Indicator: Alerts when battery needs replacement via LED\
\
• Convenient Storage: Remote unit stores inside main unit; includes soft leather carrying bag\
\

Specifications\

\
• \Cables Supported:\ RJ45 (UTP/STP, EIA/TIA 568), RJ11 (2 to 6 conductors), USB (Type A to Type B), BNC (Male connectors)\
\
• \Test Distance:\ Up to 300 feet (RJ45/RJ11/BNC)\
\
• \Faults Detected:\ No Connection, Shorts, Opens, Crossover\
\
• \Power Supply:\ 1 × 9V 6F22 Alkaline Battery (not included)\
\
• \Low Battery Warning:\ Yes, via LED\
\
• \Color:\ Grey\
\
• \Tester Dimensions:\ 162 x 85 x 25 mm\
\
• \Tester Weight:\ 164g (without battery)\
\
• \Package Size:\ 225 x 110 x 43 mm\
\
• \Package Weight:\ 215g\
\

Package Includes\

\
• 1 × 4-in-1 Network Cable Tester\
\
• 1 × Far-End Remote Jack (RJ45/RJ11/USB)\
\
• 1 × BNC Remote Jack\
\
• 1 × Instruction Manual\
\
