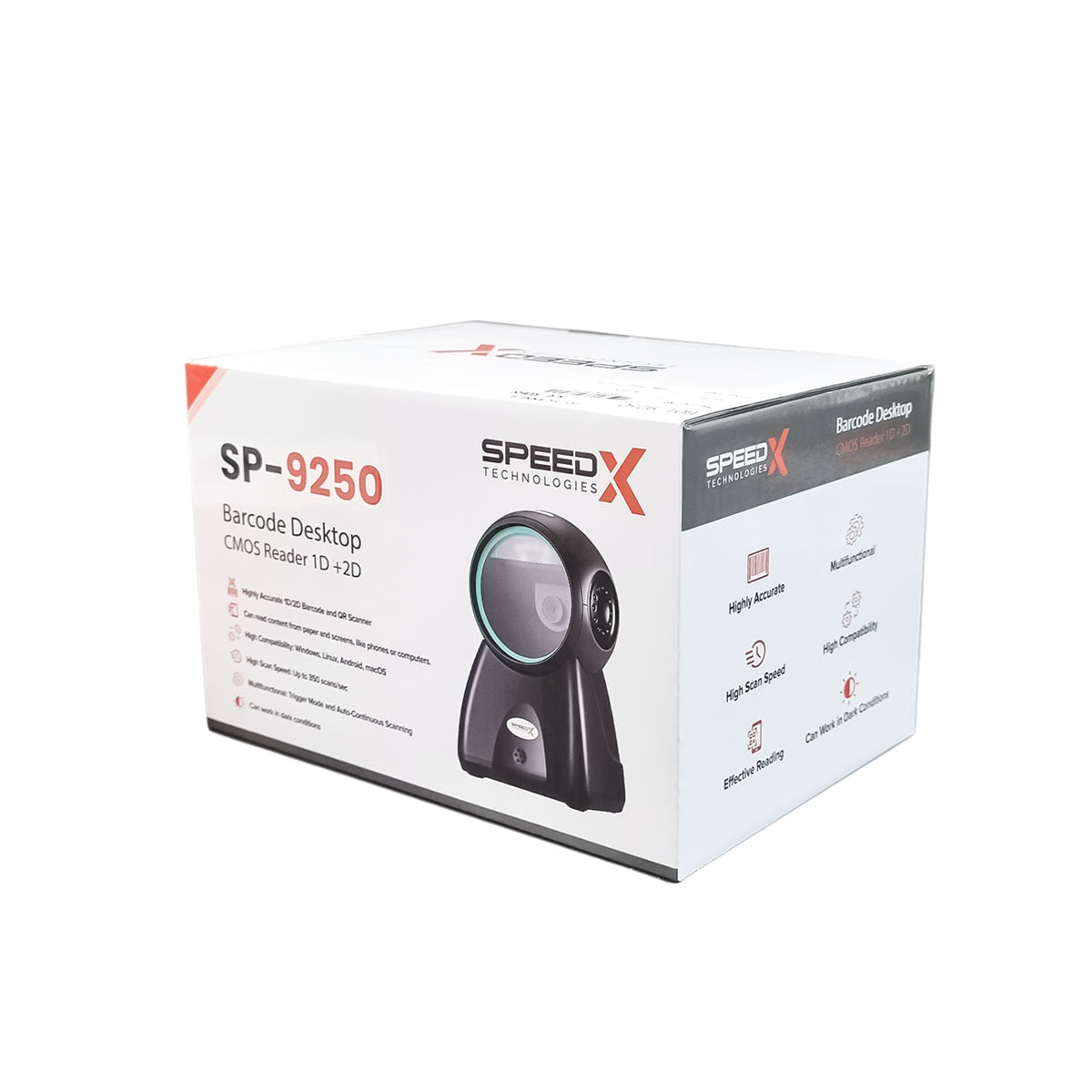

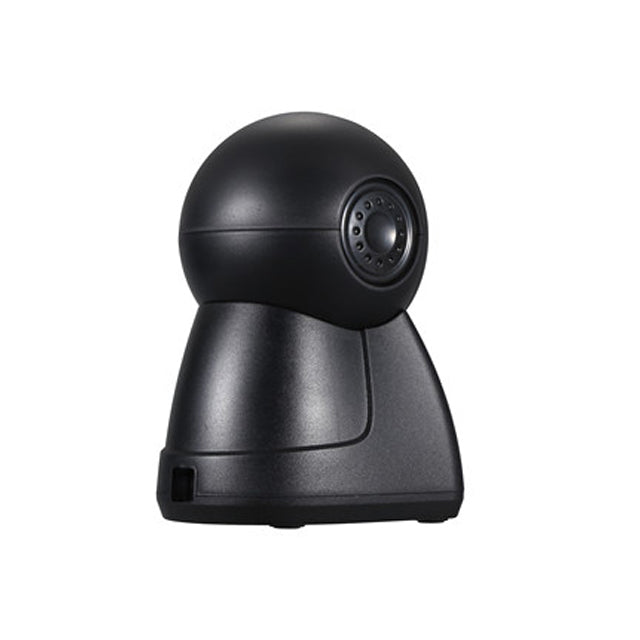

Speed-x Hoi-9250 2d Desktop Barcode Image Scanner

Overview\

This professional bar code scanner features a high-performance CMOS global exposure sensor to ensure rapid and accurate data capture. Designed for versatility, it supports the reading of both 1D and 2D barcodes, including codes displayed on mobile phone screens. With a durable, sealed design, it is ideal for a wide range of commercial and industrial environments.\

Key Features\

\
• Equipped with an advanced CMOS image sensor and a 617nm red LED light source for efficient scanning\
\
• Supports multiple scanning modes, including omni-directional induction trigger scan and follow modes\
\
• Built with a rugged IP54 sealing grade and drop resistance up to 1.5 meters on a cement floor\
\
• Capable of reading barcodes directly from mobile phone screens\
\

Specifications\

\
• \Brand:\ EVAWGIB\
\
• \Model:\ HOI-9250\
\
• \Product Type:\ Bar code scanners\
\
• \Image Sensor:\ CMOS (global exposure)\
\
• \Optical Resolution:\ 600*600\
\
• \DPI (W*H):\ 640px*480px\
\
• \Pixels:\ 640*480\
\
• \Color Intensity:\ 32 bits\
\
• \Scan Speed:\ 500/s\
\
• \Minimum Resolution:\ 0.127mm(5mil) @ code 39, pcs = 90%\
\
• \Exploration Width:\ A4\
\
• \Depth of Field Angle:\ 30°V x 48°H\
\
• \Field of View Angle:\ 48° (H) x 30° (V)\
\
• \Interface Support:\ USB, USB-COM, RS-232 (optional)\
\
• \Data Interface:\ USB\
\
• \Input Voltage:\ 5VDC ± 10%\
\
• \Operating Current:\ 175mA typical\
\
• \Use Environment:\ 0°C-50°C\
\
• \Storage Temperature:\ -20°C to +70°C\
\
• \Storage Humidity:\ 5%-95% non-condensing\
\
• \Ambient Lighting:\ 0 \~ 8,600Lux (Fluorescent), 0 \~ 100,000Lux (Sunlight)\
\
• \Structure of Material:\ ABS + PC\
\
• \Sealing Grade:\ IP54\
\
• \Drop Height:\ 1.5m (also noted as 1.2m cement floor drop on six sides)\
\
• \Product Weight:\ About 300g (without packaging and accessories)\
\
• \Gross Weight:\ About 450g (including packaging and accessories)\
\
• \Box Size:\ 175mm x 130mm x 115mm (L*W*H)\
\
• \Outer Box Size:\ 535mm x 355mm x 485mm (L*W*H)\
\
• \Color:\ Black/White\
\
• \Origin:\ CN (Origin)\
\
• \Certification:\ CE, FCC, RoHS\
\
• \Decoding Capability 1D:\ EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS\
\
• \Decoding Capability 2D:\ QR, Data Matrix (DM), PDF417\
\

Package Includes\

\
• 1x Barcode Scanner\
\
• 1x Straight Line Standard Cable (1.8m)\
\
