Speed-x Bt500m Mini Portable Bluetooth+usb Printer 58mm

Overview\

This portable thermal line printer features high-speed printing up to 90 mm/s and versatile USB and Bluetooth connectivity. Equipped with smart power-saving functionality and wide OS compatibility, it provides an efficient and reliable printing solution for mobile and office use.\

Key Features\

\

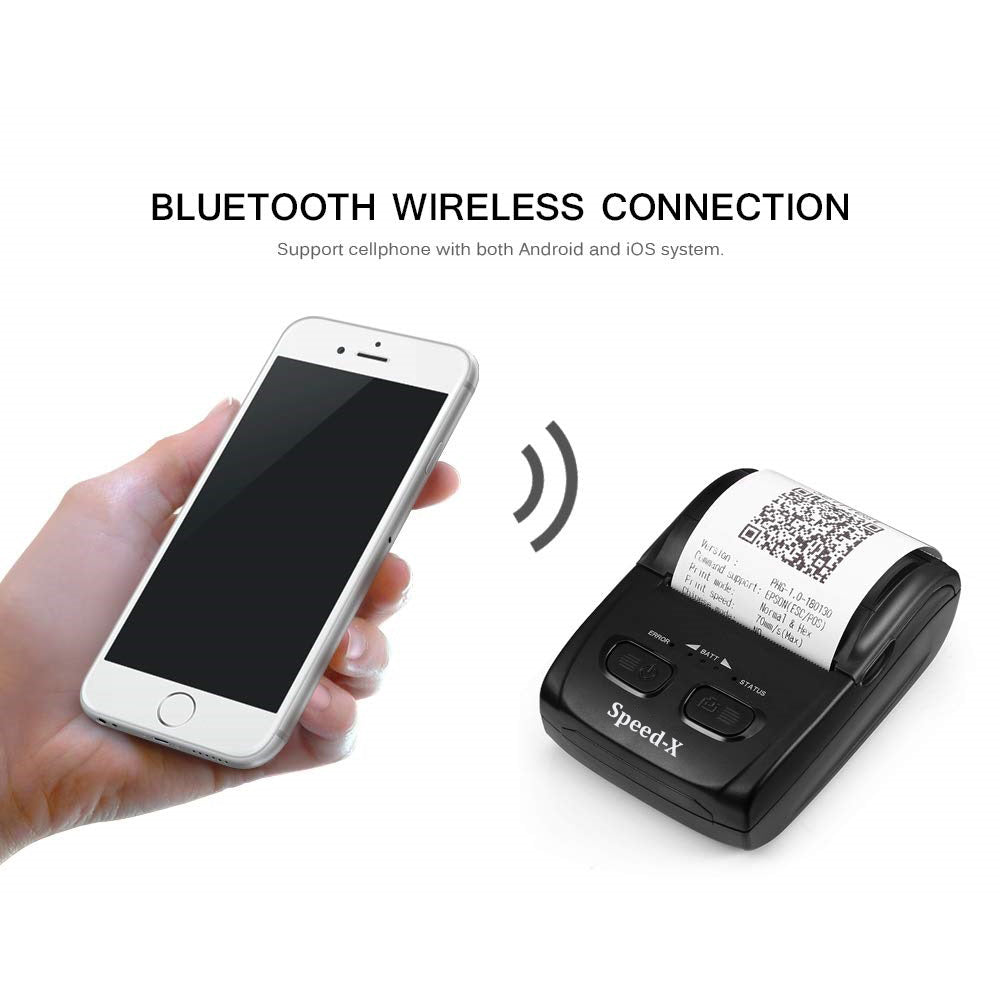

• Dual interface options supporting both USB and Bluetooth connectivity.\
\
• Smart power saving mode, including dormancy and variable speed options.\
\
• Integrated sensor support for paper lack detection, power display, and charge indication.\
\

Specifications\

\
• \Printing Method:\ Thermal Line\
\
• \Effective Printing Width:\ 58mm\
\
• \Resolution:\ 384 dots/line (8 dots/mm, 203dpi)\
\
• \Printing Speed:\ 90 mm/s (MAX)\
\
• \Line Spacing:\ 3.75mm (adjustable by command)\
\
• \Line No:\ Font A: 32 characters/line; Font B: 42 characters/line\
\
• \Character Size:\ ANK character; Font A: 1.5x3.0mm (12x24 dots); Font B: 1.1x2.1mm (9x17 dots)\
\
• \Extended Character Set:\ PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, IranII, Latvian, Arabic, PT151 1251, PC737, WPC 1257, Thai Vietnam, PC864, PC1001\
\
• Siam\Barcode:\ 1D: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), CODE39, ITF, CODABAR, CODE93, CODE128; 2D: QRCODE\
\
• Siam\Graphics Printing:\ Supports bitmap download and print (Max 8K per bitmap, up to 5pcs)\
\
• \Paper Type:\ Thermal\
\
• \Paper Width:\ 57.5\±0.5mm\
\
• \Paper Thickness:\ \≤0.12mm\
\
• \Paper Diameter:\ \≤40mm\
\
• \Paper Feed:\ Easy clamshell feed\
\
• Siam\Print Commands:\ ESC/POS\
\
• \Power Type:\ Rechargeable Lithium polymer battery\
\
• \Battery Capacity:\ 1500mAh / 7.4V\
\
• \Charger:\ 5.0V / 1A\
\
• \Buffer Input:\ 4KB\
\
• \NV Flash:\ 40KB\
\
• \Weight:\ 200g\
\
• \Dimension:\ 112*79*48 mm\
\
• Siam\Operating Temperature:\ 5 \~ 45\°C\
\
• \Operating Humidity:\ 10 \~ 80%\
\
• \Storage Temperature:\ -10 \~ 50\°C\
\
• \Storage Humidity:\ 10 \~ 90% (No Dew)\
\
• \Print Head Life:\ 50KM (Printing Density \≤12.5)\
\
• \Software Driver:\ Android, iOS, Linux, Windows\
\
