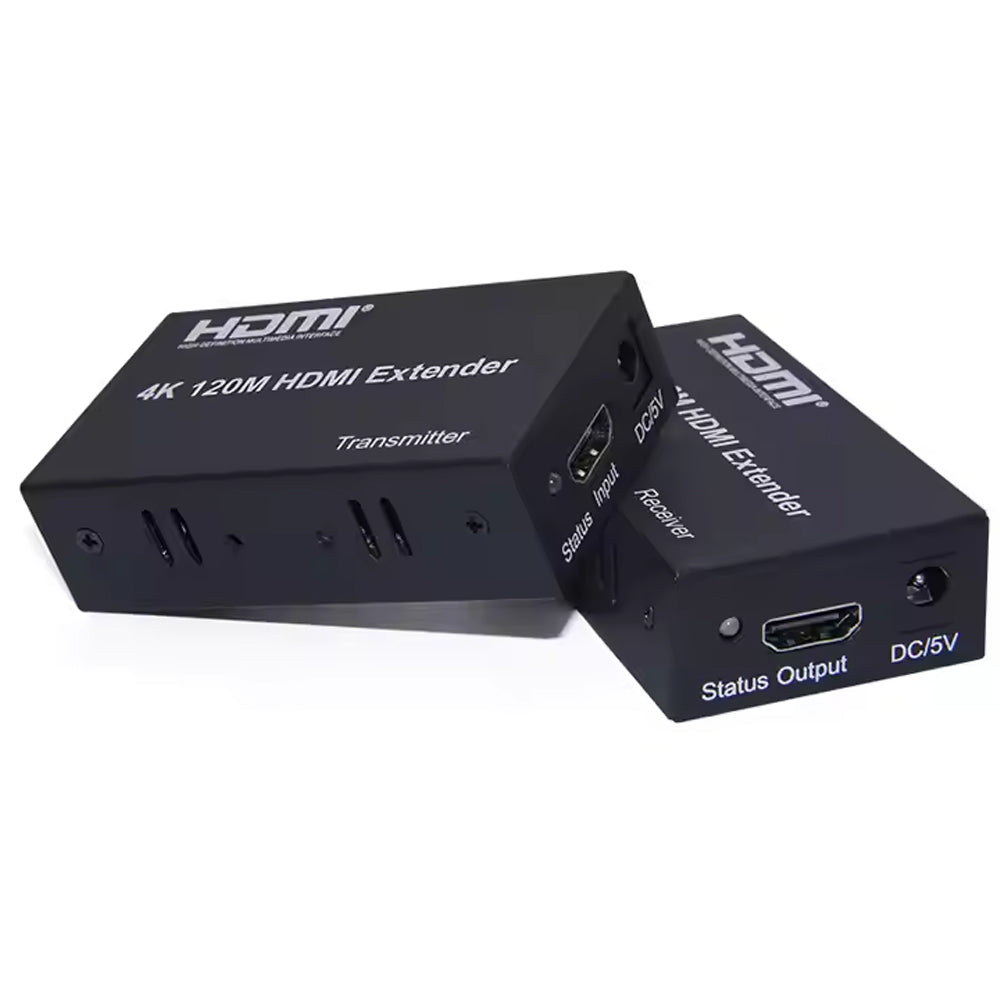

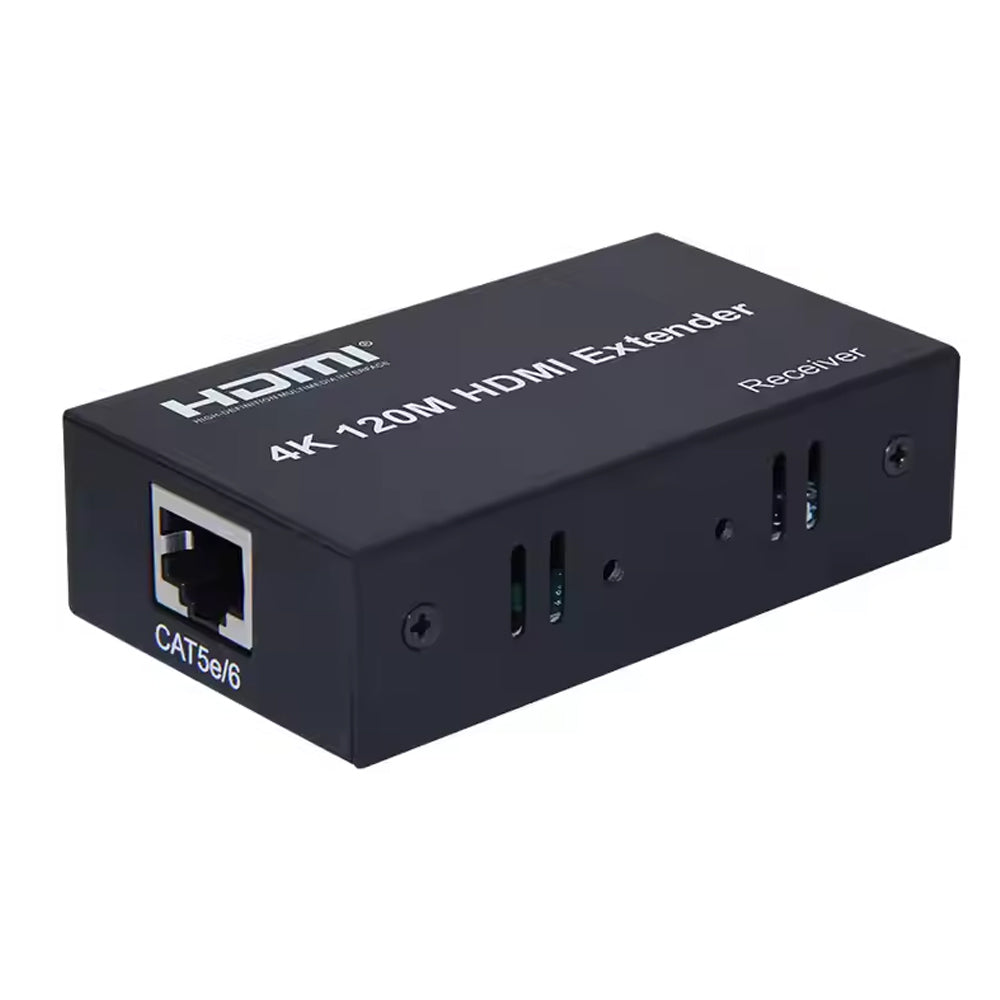

Hdmi Range Extender Single Lan 120m

Overview\

This HDMI extender converts HDMI signals to standard TCP/IP to transmit high-definition audio and video over an internet cable or LAN. It allows you to extend your HDMI source to various display equipment, such as HD projectors, DLP, LCD, and LED screens, using existing network infrastructure. It supports long-distance transmission up to 120m (394ft) using a single network cable and can be distributed via network routers for cascade connections.\

Key Features\

\
• Auto Adjustment to Match Cable Length: Automatically adjusts specifications for different cable lengths from 1m to 160m to achieve the best display.\
\
• M-JPEG Technology: Processes image compression with minimal loss of image quality.\
\
• HDCP Compatible: Ensures compatibility with protected content.\
\
• Flexible Transmission: Supports transmission over UTP Cat5e/6 cables up to 120m, as well as transmission over LAN.\
\
• Extended Range and Distribution: Extends an additional 120m by adding an Ethernet router, and can transmit over switches or routers to extend distances over 20km.\
\
• Broadcast Mode: Works like an HDMI splitter to broadcast an HDMI signal from one sender to multiple receivers over a switch.\
\

Specifications\

\
• \Supported HDMI Formats:\ 480i@50Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1080p@24Hz\
\
• \Transmission Distance:\ Up to 120m / 394ft via standard UTP Cat5e/6 (extendable to over 20km over switches/routers)\
\
• \Supported LAN Bandwidth:\ 100M\
\
• \Cable Compatibility:\ CAT5 / CAT5e / CAT6 network cables\
\
